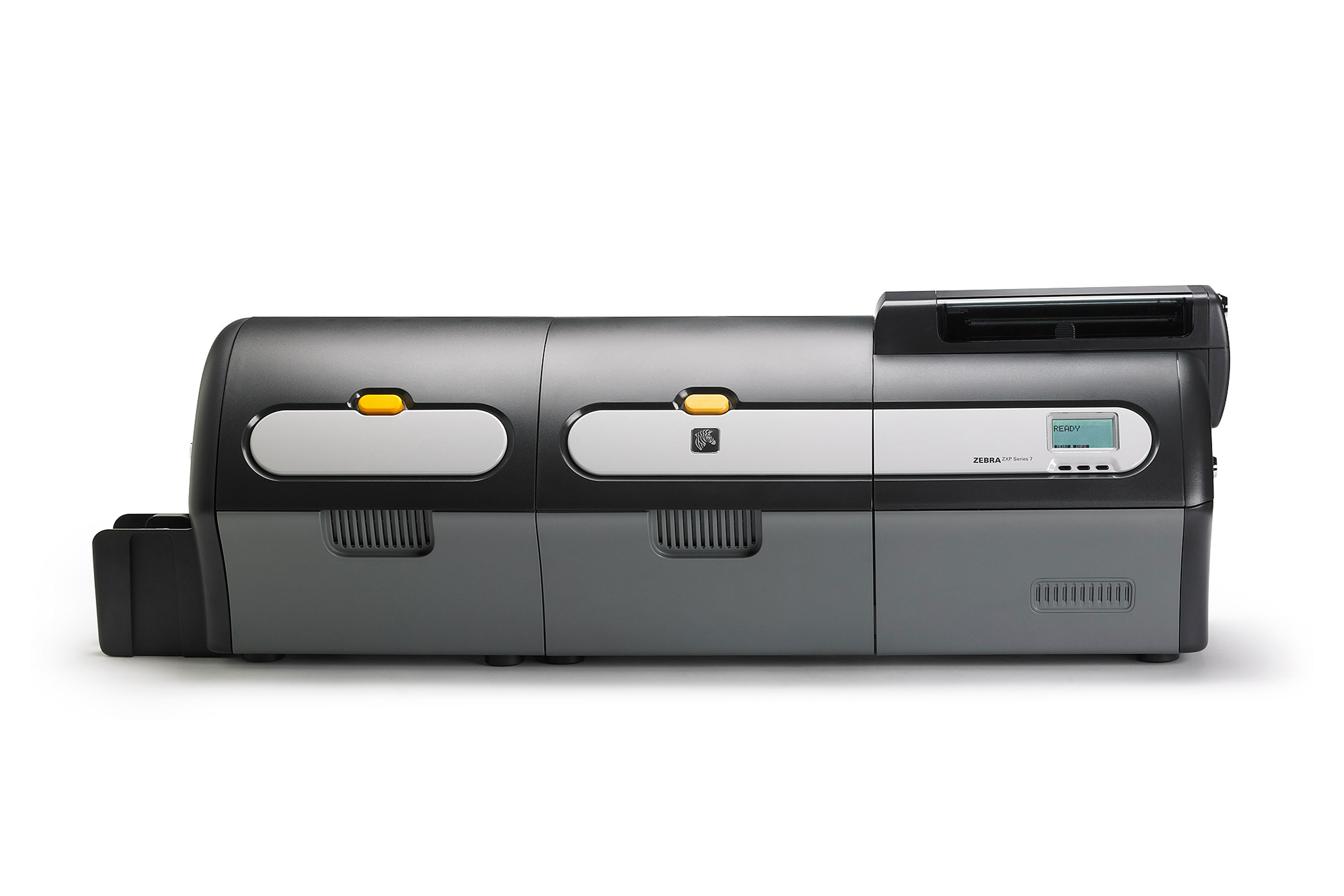

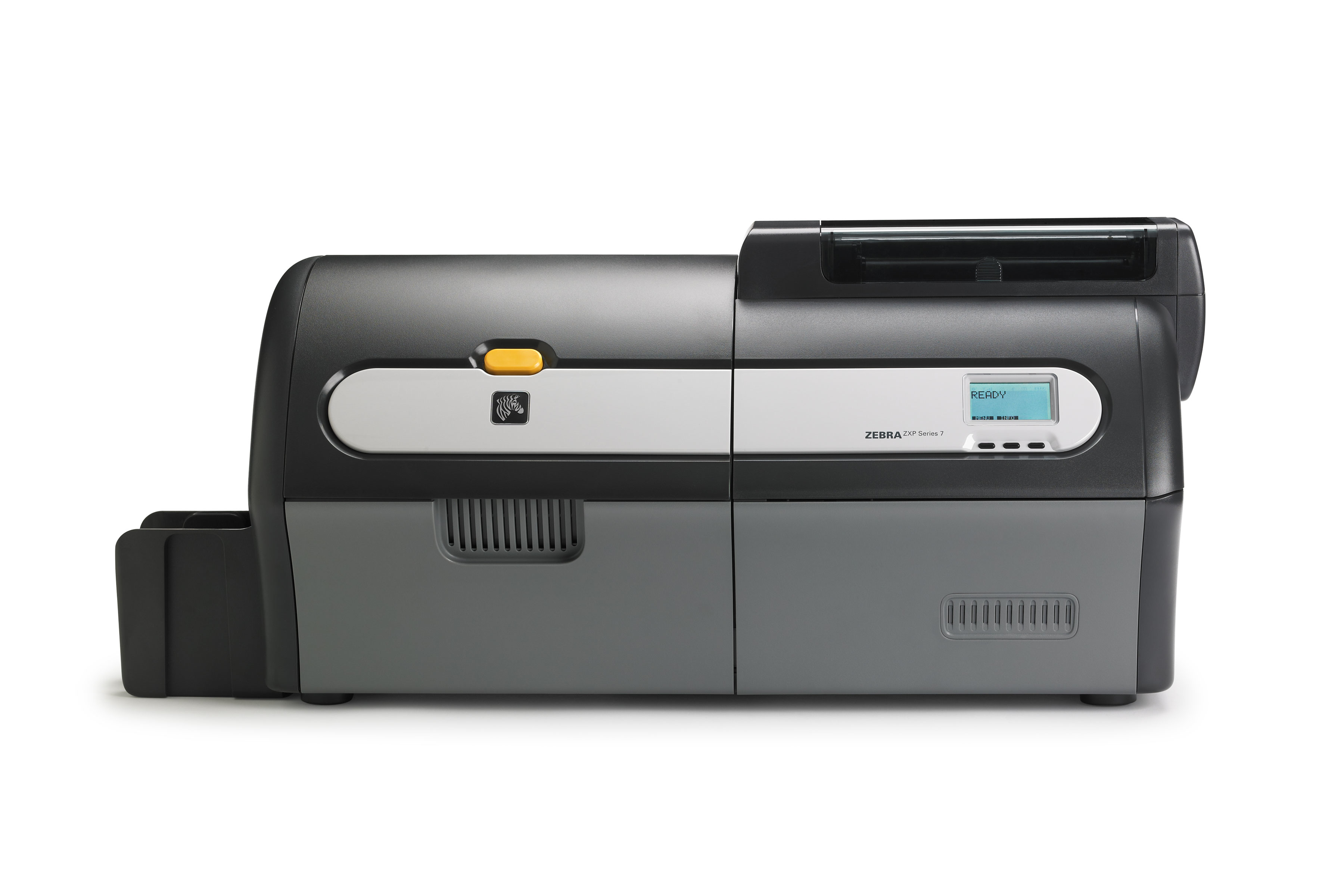

Using the latest in Zebra card-printing technology, the ZXP Series 7 provides high-quality card printing. The ZXP Series 7 printer has an innovative design. It automatically adjusts to the thickness of the card, and ribbon loading is easy. With colour coded guides and a clear LCD control panel, it's simple for anyone to use.
For partners and customers who would like to use a Zebra card printer with their smartcard encoding application, please contact your Account Manager or a Zebra approved smartcard ISV for integration support.
PERFORMANCE: WORKS THE WAY YOU NEED IT
The ZXP Series 7 printer is built to meet the needs of today’s demanding business environment. It features a robust design that works out of the box in a wide range of environments and applications, plus it generates near-photographic print quality and colour depth using photo-print technology. The printer also performs edge-to-edge card printing, while the laminator ensures security of the cards and lengthens the life of the image.
PRODUCTIVITY: HIGH SPEEDS AND LOW MAINTENANCE
The ZXP Series 7 printer features fast print speeds that improve productivity and reduce wait time. Thanks to its fast print speeds, up to three jobs can be in process at the same time (encoding, printing and laminating simultaneously), enabling fastest throughput. Ease of integration and low maintenance are ensured by the high-capacity media, ribbon and laminate rolls that are synchronised, plus ribbon loading and operation are made easy.
ADAPTABILITY: MEET BUSINESS NEEDS—NOW AND IN THE FUTURE
The ZXP Series 7 printer offers real flexibility. You can select options whenever you need them—so you can add to your portfolio of card-printing applications and manage your investment at the same time. Options include singe or dual-sided printing, wasteless single- or dual-sided lamination. The series also offers a variety of encoding and connectivity options, including UHF encoding and wireless connectivity.
Product Specifications
Manufacturer
Zebra
Manufacturer Part Number
Z71-U00C0000US00
Brand Name
Zebra
Product Name
Zebra ZXP Series 7 plastic card printer Dye-sublimation/Thermal transfer Colour 300 x 300 DPI Wi-Fi
Mfr. Part Number
Z71-U00C0000US00
Printing
Print technology
Dye-sublimation/Thermal transfer
Colour
Yes
Maximum resolution
300 x 300 DPI
Duplex printing
Yes
Print speed (monochrome)
1375 card/h
Print speed (colour)
300 card/h
Duplex print speed (colour)
225 card/h
Card feeder
Yes
Card types
ABS, PVC Composite
Card size
86 x 54 mm
Printing media thickness
10 - 50 µm
Card thickness (min)
0.25 mm
Card thickness (max)
1.27 mm
Features
Display
LCD
Lamination
Yes
Total input capacity
250 sheets
Product colour
Grey
Built-in display
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Ports & interfaces
USB port
Yes
USB version
2.0
Wi-Fi
Yes
Wi-Fi standards
802.11b, 802.11g
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet, 100 Gigabit Ethernet
Power
AC input frequency
47/63 Hz
AC input voltage
90 - 264 V
Operational conditions
Operating temperature (T-T)
15 - 35 °C
Storage temperature (T-T)
-5 - 70 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 90%
System requirements
Windows operating systems supported
Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64
Weight & dimensions
Width
699 mm
Depth
277 mm
Height
306 mm
Weight
12.2 kg
Brand
Zebra
Availability
In Stock
Price Currency
USD
Category
Wireless & Access Points
