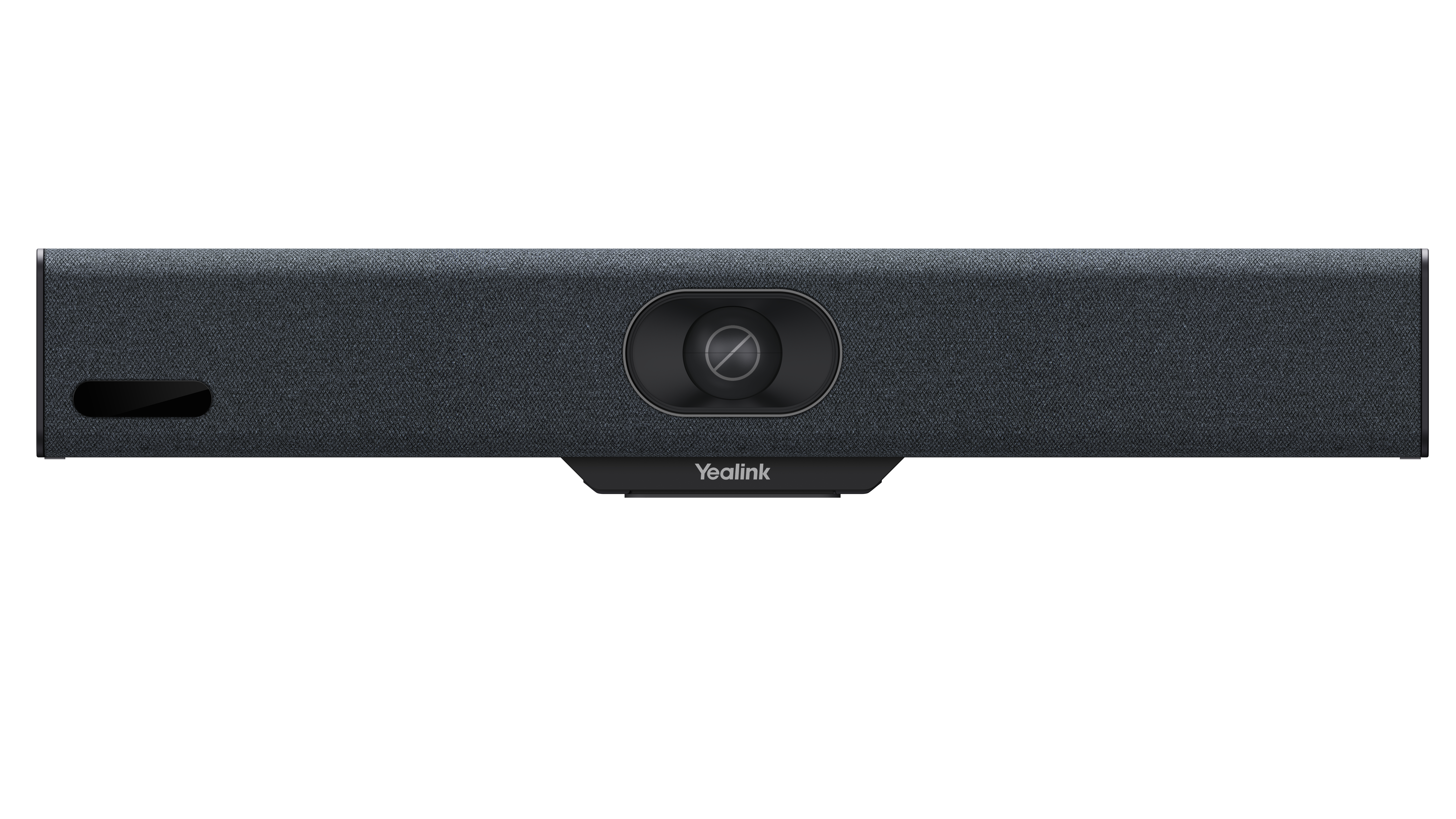

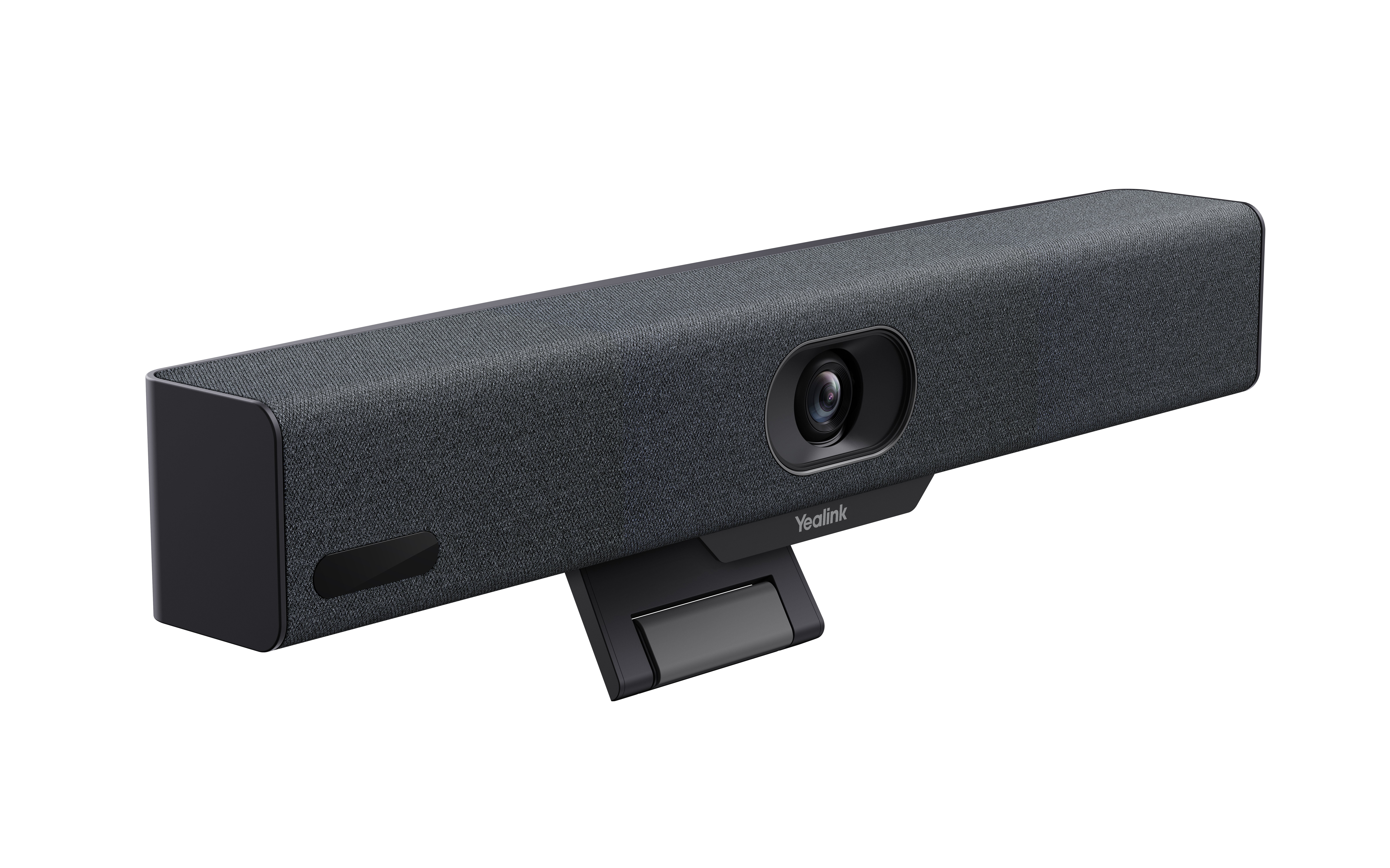

Yealink MeetingBar A10 is an all-ine-one video bar deisgned for small space (1-7 people) and home office. The built-in 4k camera with 120° field of view catches details precisely, with great color. AI-powered features including Auto Framing, Speaker Tracking and Smart Gallary deliver a focused view without distraction. The built-in 8-MEMS beamforming microphones pick up voice from all directions, and a full-duplex audio algorithm with AI-enhanced noise cancellation delivers clear sound for both sides clearly even if you are talking at the same time.
Product Specifications
Manufacturer
YeaLink
Manufacturer Part Number
1203680
Barcode
6938818312418
Brand Name
YeaLink
Product Name
Yealink MeetingBar A10-010
Mfr. Part Number
1203680
Barcode
6938818312418
Performance
Number of cameras
1
Bluetooth
Yes
Bluetooth version
4.2
Product colour
Black, Grey
Auto framing
Yes
Auto-tracking
Yes
Tracking modes
Presenter mode
Meeting features
Add participates, Calendar, Content sharing, Hold/Resume, One-click join
Product type
Video collaboration bar
Wall mountable
Yes
PTZ control
Yes
Video
HD type
4K Ultra HD
Maximum video resolution
3840 x 2160 pixels
Maximum frame rate
30 fps
Video codecs
H.264 High profile, H.264 SVC, H.264
Audio
Built-in speaker(s)
Yes
Audio system full duplex
Yes
Echo cancellation
Yes
Speaker power
5 W
Ports & interfaces
HDMI output ports quantity
1
USB connector type
USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Line-in
Yes
Line-out
Yes
Microphone in
Yes
Reset slot
Yes
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Wi-Fi
Yes
Security algorithms
256-bit AES, EAP-TLS, MSCHAPv2, PEAP, TLS
Camera
Camera type
Single camera
Horizontal field of view
105°
Diagonal field of view
120°
Auto Focus (AF) object detection
People
Remote control interface
Ethernet
Camera privacy shutter
Yes
Microphone
Microphone sensitivity
88 dB
Microphone mute
Yes
Number of microphone arrays
8
Features
Motion sensor
Yes
Cable lock slot
Yes
Logistics data
Country of origin
China
Computer system
Operating system installed
Android 10
Mobile operating systems supported
Android 11.0
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 95%
Storage temperature (T-T)
-30 - 70 °C
Power
Power source type
AC
AC input voltage
100 - 240 V
DC output voltage
48 V
DC output current
0.7 A
Power consumption (typical)
10.5 W
Power consumption (max)
14 W
Power consumption (idle)
10 W
Certificates
Certification
CE, FCC, RoHS, REACH, ISO 9001, CCC, NOM
Weight & dimensions
Width
380 mm
Depth
68 mm
Height
82 mm
Weight
2.08 kg
Packaging data
Package width
165 mm
Package depth
150 mm
Package height
447 mm
Package weight
2.31 kg
Packaging content
Cables included
HDMI, LAN (RJ-45)
Networking cable length
3 m
HDMI cable length
1.8 m
AC adapter included
Yes
Remote control included
Yes
Quick start guide
Yes
Brand
YeaLink
Availability
In Stock
