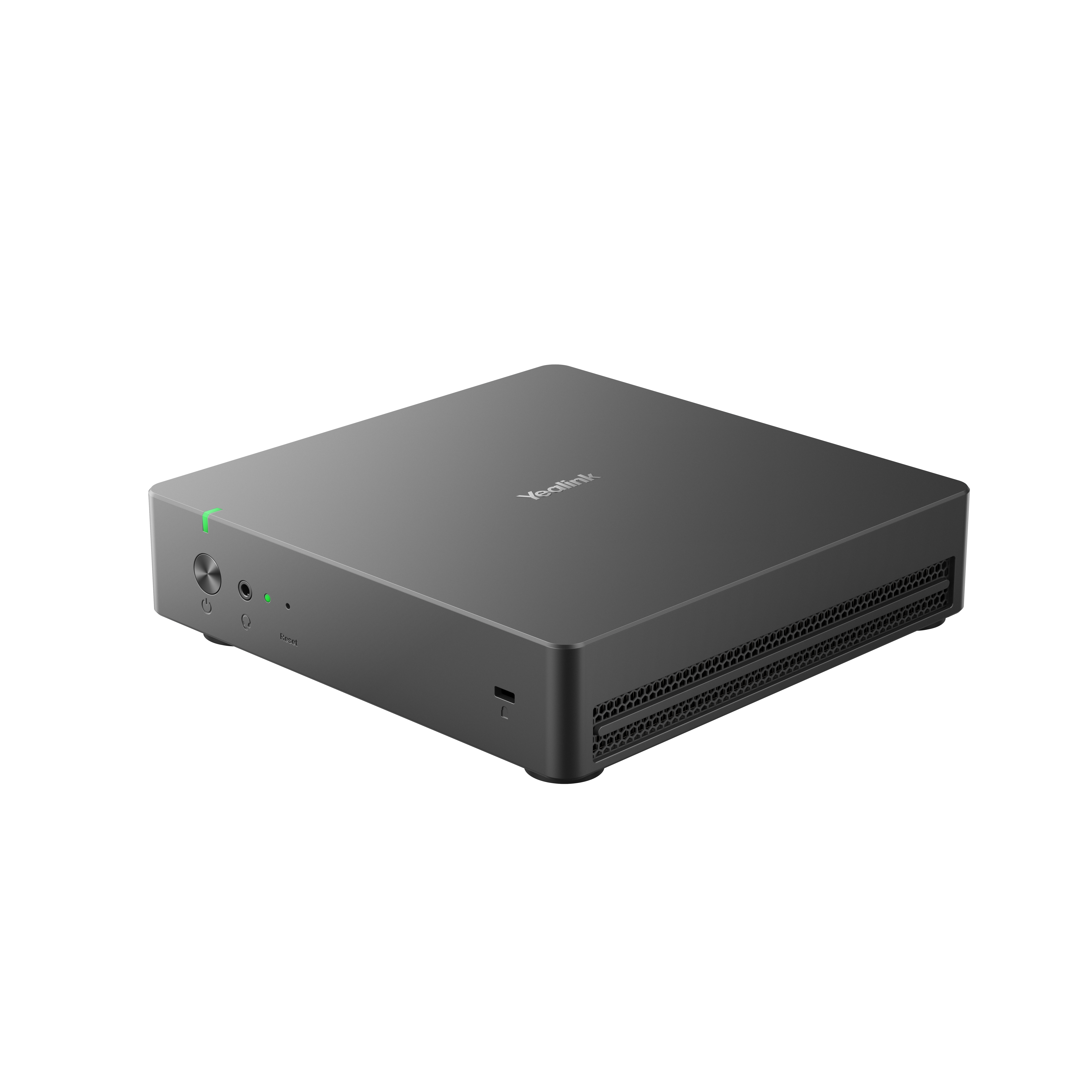

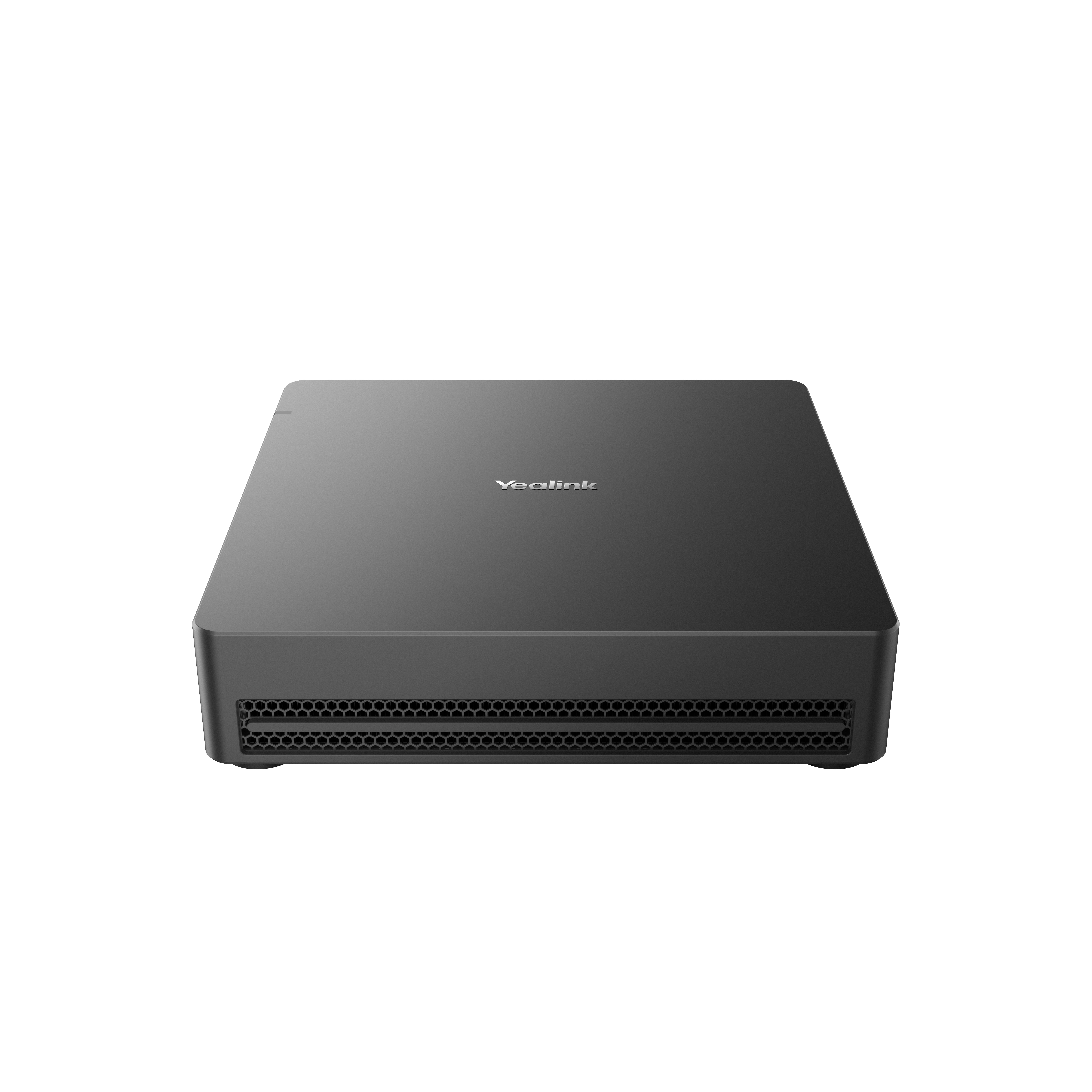

Name: Yealink - MCore4-MS 1306064
Brand: YeaLink
SKU: 1306064
Price: 1527.40 USD
Availability: InStock

800-571-4174 sales@ustechdevices.com 8600 Shadwell Dr Unit 10, Alexandria, VA, 22309-4630 Monday to Friday, 8:00am - 6:00pm Eastern CAGE 9SMN9 UEI SL7DR58VLH84 Purchase orders accepted · Net 30 for approved accounts

Home /Printing, Imaging & Consumables /Yealink - MCore4-MS

Product Details

The MCore Kit serves as the core component of Yealink’s 4th-gen MVC system, featuring a high-performance AI PC MCore 4 and a touch panel MTouch Plus. Designed specifically for video conference rooms, it offers a flexible and reliable deployment solution. Additionally, MCore 4 supports Windows Autopilot, enabling IT administrators to automatically configure new devices for seamless integration into the existing IT ecosystem.

Product Specifications

Manufacturer	YeaLink
Manufacturer Part Number	1306064
GTIN / Barcode	6938818322707
Brand Name	YeaLink
Product Name	Yealink - MCore4-MS

Processor
Mfr. Part Number	1306064
GTIN / Barcode	6938818322707
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor generation	Intel® Core™ Ultra (Series 1)
Processor model	125H
Processor cores	14
Processor threads	18
Processor boost frequency	4.5 GHz
Performance cores	4
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	4.5 GHz
Efficient-core Max Turbo Frequency	3.6 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	1.2 GHz
Efficient-core base frequency	0.7 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache	18 MB
Processor cache type	Smart Cache
Number of processors installed	1
Processor base power	28 W
Maximum turbo power	115 W
Neural processor unit (NPU)
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Storage
Total storage capacity	256 GB
Storage media	SSD
Optical drive type	No
Total SSDs capacity	256 GB
Graphics
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
On-board graphics card model	Intel Arc Graphics
Performance
Trusted Platform Module (TPM)	Yes
Product type	PC
Trusted Platform Module (TPM) version	2.0
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	4
HDMI version	2.0/2.1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Design
Chassis type	Mini PC
Product colour	Black
Country of origin	China
Software
Operating system architecture	64-bit
Operating system installed	Windows 11 IoT Enterprise
Display
Display included	No
Weight & dimensions
Width	188 mm
Depth	188 mm
Height	47.5 mm
Weight	1.9 kg
Packaging data
Package width	371 mm
Package depth	268 mm
Package height	122 mm
Package weight	12.3 kg
Brand	YeaLink
Availability	In Stock
Price Currency	USD
Category	Printing, Imaging & Consumables
